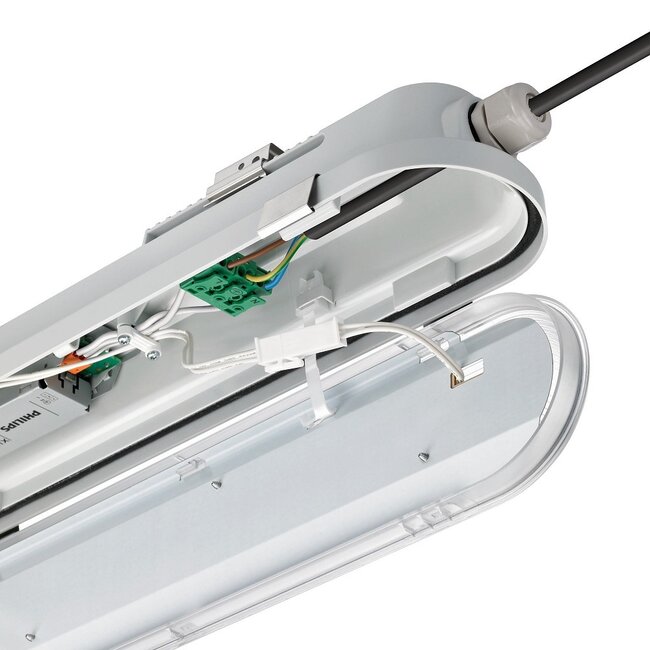

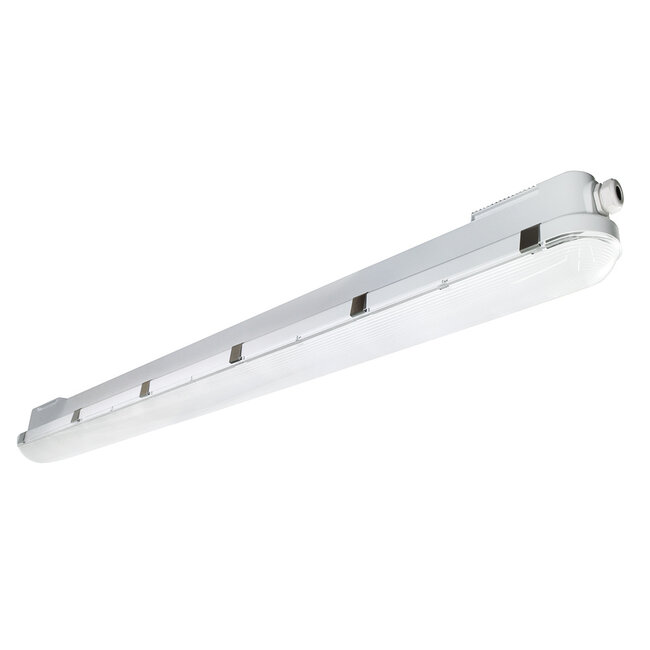

WT120C - LED Module, system flux 4000 lm - Power supply unit
Whether it's new construction or the renovation of an existing space, you want lighting solutions that deliver quality of light and substantial savings on energy and maintenance. The new range of CoreLine Waterproof LED luminaires can be used to replace traditional waterproof luminaires with fluorescent lamps. There are alternatives to 1/2x36W and 1/2x58W. The number of types is clear, so the choice is very easy.
| Product family code |
WT120C [WT120C] |
| Number of lamps |
1 [1 pc] |
| Bulb type |
LED40S [LED Module, system flux 4000 lm] |
| lamp color |
840 [840 cool white] |
| Light source replaceable |
No no] |
| Transformer |
PSU [Power Supply Unit] |
| Driver integrated |
Yes Yes] |
| Optical Shield/Lens Type |
PC [Polycarbonate] |
| Emergency lighting |
new |
| Dimmable |
No no] |
| Link |
PIP [Plug connector and strain relief] |
| Safety class |
CLI [Safety class I] |
| Degree of Protection (IP) |
IP65 [Dust penetration-protected, jet-proof] |
| IK code |
IK08 [5 J vandal protected] |
| Length |
L1200 [1200mm] |
| Colour |
GR [Grey] |
| Glow wire test |
850/30 [Temperature 850 °C, duration 30 s] |
| Quality mark |
F [For mounting on normally combustible surfaces] |
| European Community Mark |
CE [CE Marking] |
| ENEC marking |
new |
| UL Mark |
new |
Electrical characteristics
| mains voltage |
220-240V [220 to 240V] |
| Mains frequency |
50-60Hz [50 to 60Hz] |
Mechanical properties
| Housing material |
PC [Polycarbonate] |
| Optical material |
PC [Polycarbonate] |
| Cover/lens material |
PC [Polycarbonate] |
initial performance. (IEC compliant)
| System Power |
41W [41W] |
| Initial Luminous Flux |
4000 Lm |
| Initial efficacy LED fixture |
105 Lm/W |
| Lamp color temperature |
4000 [4000K] |
| init. Color Rendering Index |
>80 [>80] |
| Initial Color Quality |
(0.38, 0.38) SDCM < 3.5 |
About time perform. (IEC compliant)
| Average Life L90B50 |
15000 hrs |
| Average Life L80B50 |
30000 hr |
| Average Life L70B50 |
50000 hrs |
| Driver failure rate at 5000 h |
1% |
Application conditions
| Average ambient temperature |
T25 [+25 °C] |
| Ambient temperature |
-20 to +35°C [-20 °C to +35 °C] |
| history for will. links |
[Yes (relates to presence/motion detection and daylight switching)] |
