Round aluminium luminaire for recessed ceiling mounting; powder-coated, matt texture; tool-free installation with springs; suitable for ceiling thicknesses of 4-22 mm; installation depth 63 mm; with COB (Chip on Board) technology for maximum efficiency; 350 mA; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; 355° rotation and 35° tilt; protection degree IP20; Class 3; driver not included ; light source can be replaced by Wever & Ducré or by a qualified technician with express approval;
General: Ceiling, Built-in, max. tilt angle 35°, rotation 355°, IP20, IC rated, Interior
LED: CRI ≥ 90, L70 / 50000h, initial MacAdam ≤ 3 SDCM
Electrical: excl. driver, 16 V, Inset 6.0 W, Class 3, 350 mA

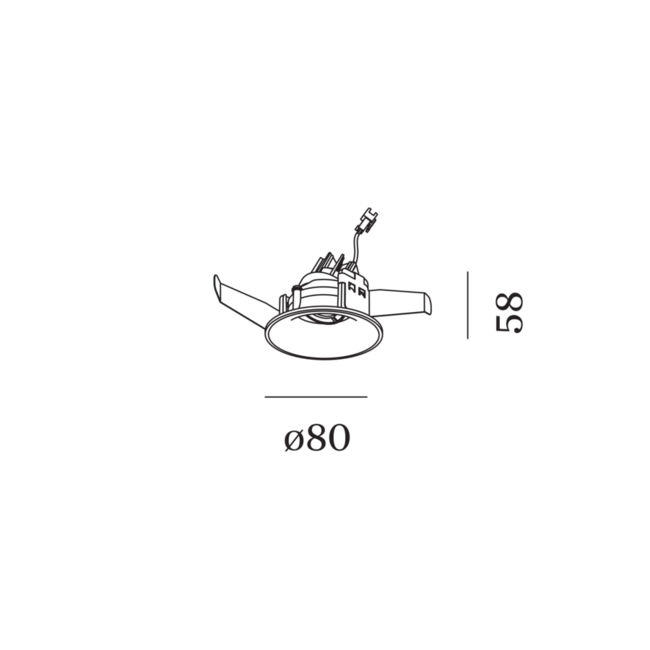

Physical: diameter 80 mm, height 58 mm, 0.12 kg
Cutout springs: diameter 70 mm, minimum ceiling thickness 4 mm, maximum ceiling thickness 22 mm, installation depth 63 mm
Cutout leaf springs: diameter 69-71 mm, minimum ceiling thickness 8 mm, installation depth 63 mm
2700K - 17V - 6W - 540lm
3000K - 17V - 6W - 570lm
2000K-3000K color warm dimming - 39° - 16V - 5.8W - 440lm

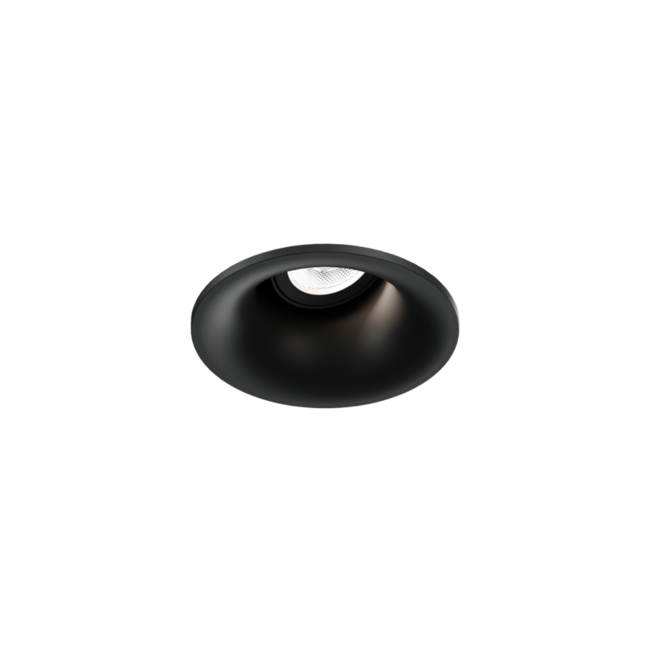

Matt black, RAL 9011

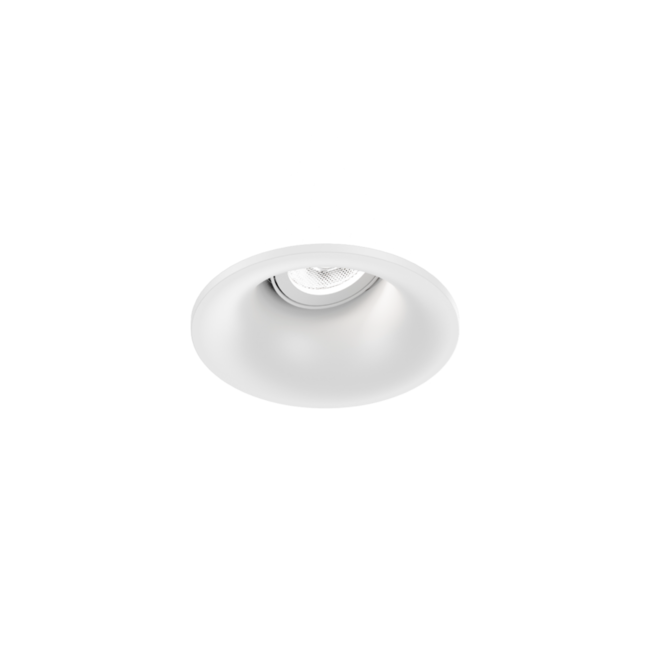

Matt white, RAL 9010
Recommended LED driver;
90223406 Driver 350Ma, 10W, 13-26V Phase cut Dim
90223504 Driver 350Ma, 14.7W, 26-42V Phase cut Dim
90243501 DALI Driver 350Ma, 14W, 2.5-42V DALI-2
