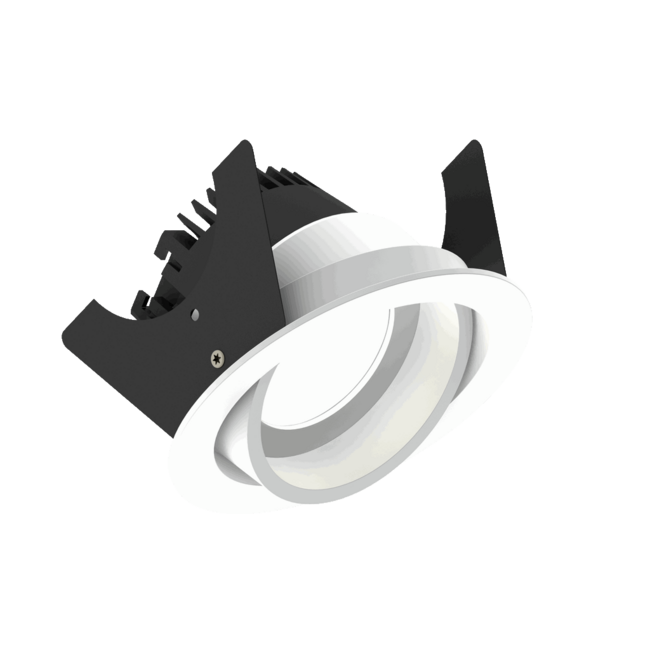

Fluxe 90 HV-FD adj 800lm 2700K CRI93 80deg Triac CS white. Available in 2700K, 3000K, and 4000K.
Standard product including connection piece or power supply.
| Model | Flux 90 |
|---|---|
| Light output | 800Lm |
| Cri | 93 |
| Wattage | 10.5W |
| Lumen watt | 76 Lm/W |
| Tension in | 220-240V~ |
| Power factor | 0.99 |
| At a rapid | <100mA / 0 µs (soft start) |
| Maximum amount 16 amps | 48 pieces |
| Dimming | Triac dimming |
| Colour | Matt white RAL 9016 |
| Material | Cast aluminum |
| Intrusion protection | IP20 |
| Beam angle | 80 degrees |
|---|---|
| Protection against dust and water ingress, shock resistant | IK03 |
| Safety class | I |
| Safety standards | EN60598 / EN62031 / EN62471 |
| EMC standards | EN55015 |
| Operating temperature | -20°C / +45°C |
| Dimensions | 105x70mm |
| Box dimensions | 600x400x400mm |
| Lifelong L90B10 reported | >70,000 hours |
| Warranty | 7 years |
| Ceiling spring type | Leaf spring |
| Hole size | Ø 90 mm |
| Technology | HV-FD |
| Product group name | Recessed spotlights Small |
